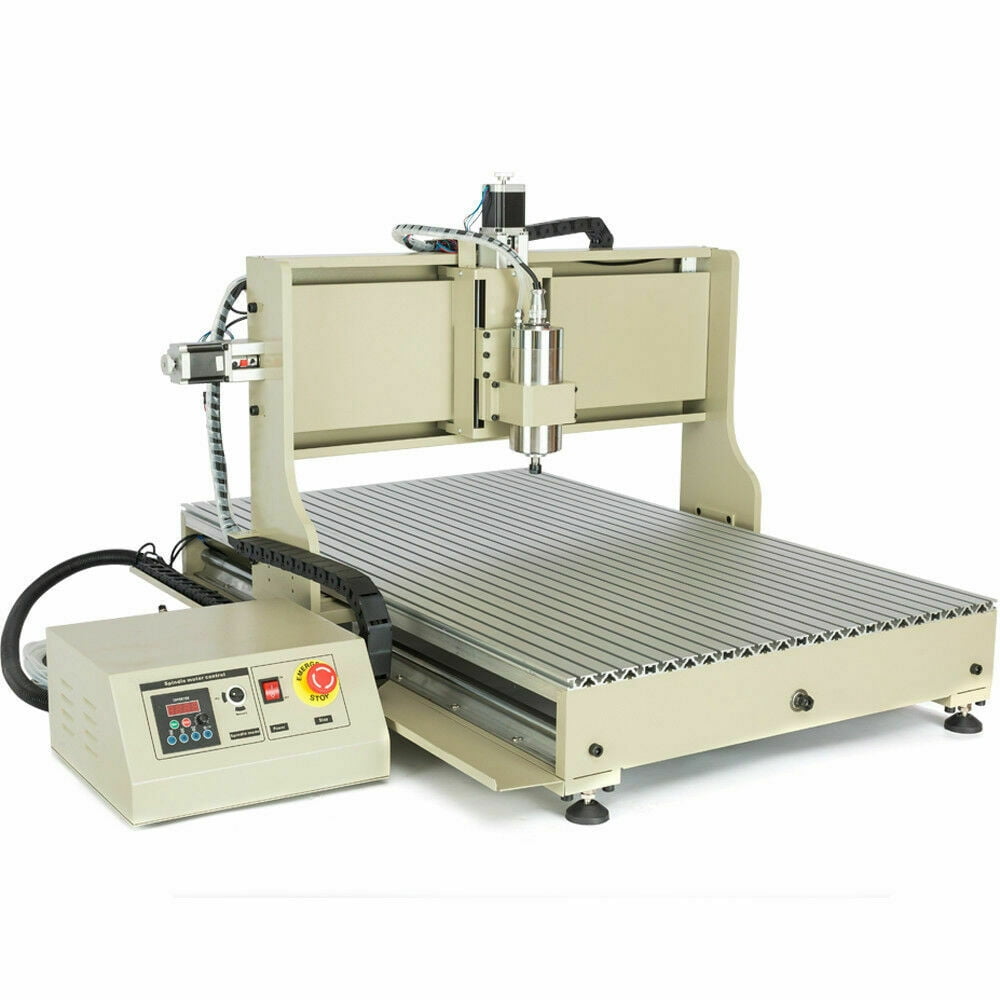

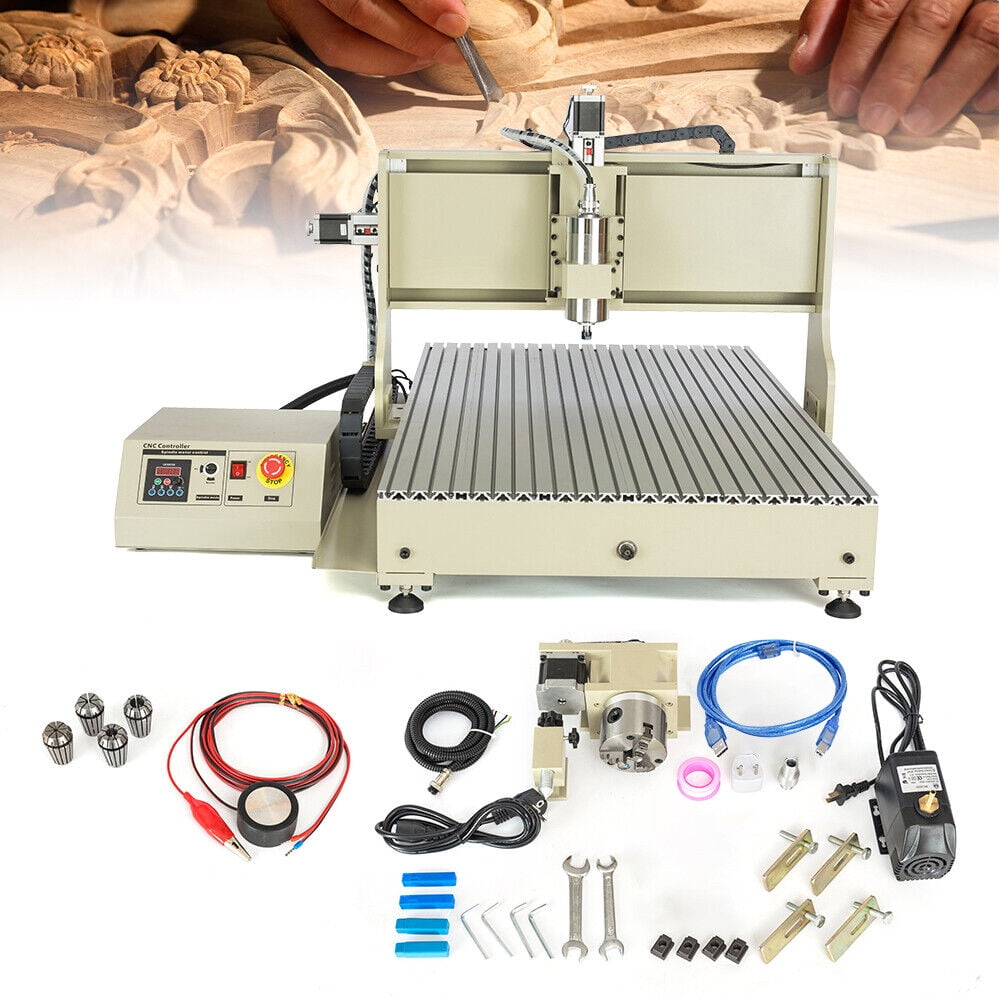

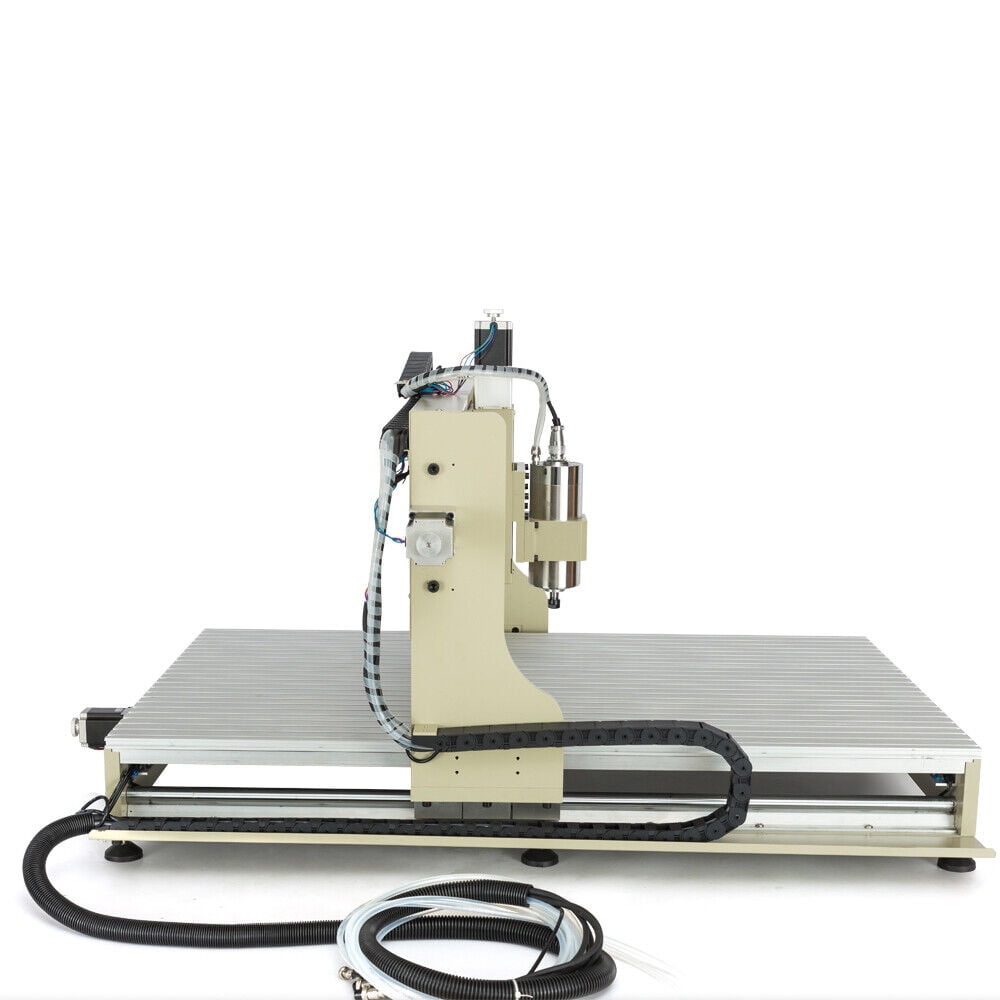

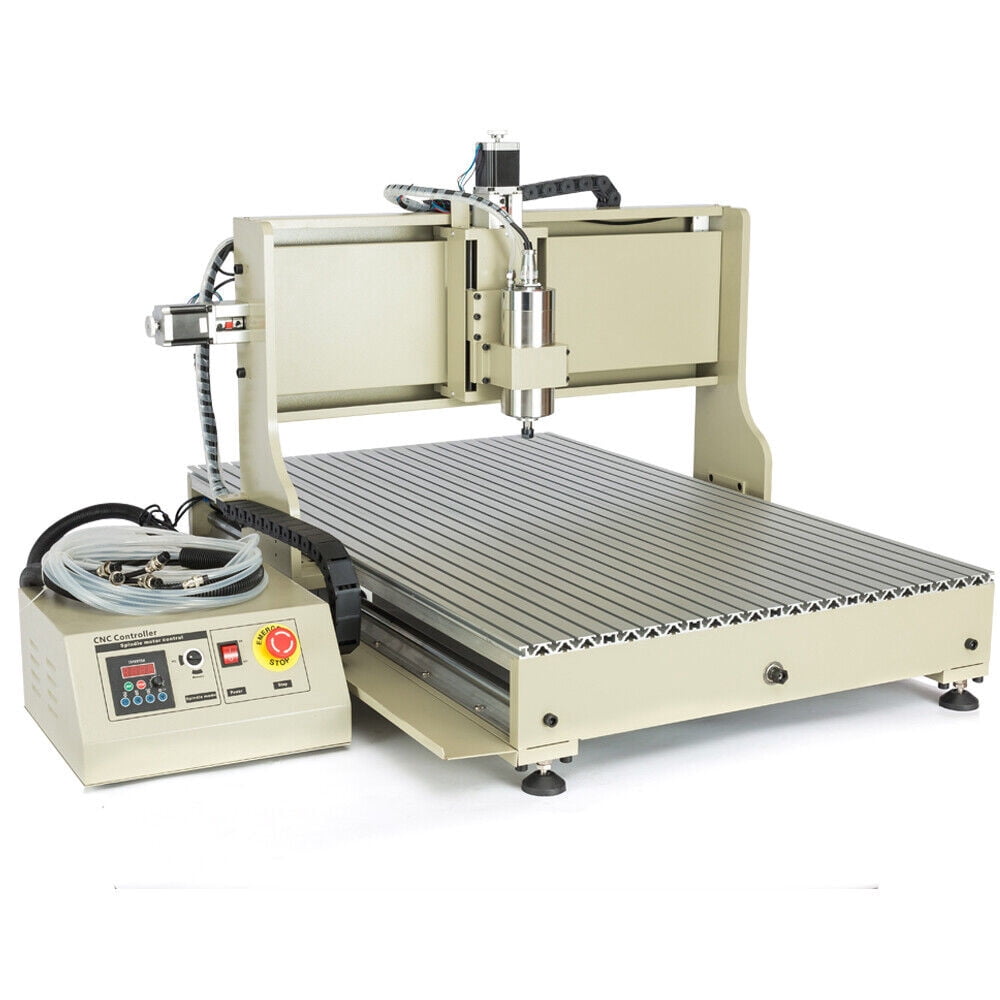

Miumaeov 4 Axis CNC 6090 Router Engraver Wood Carving Milling Machine 2.2kW+Controller USB

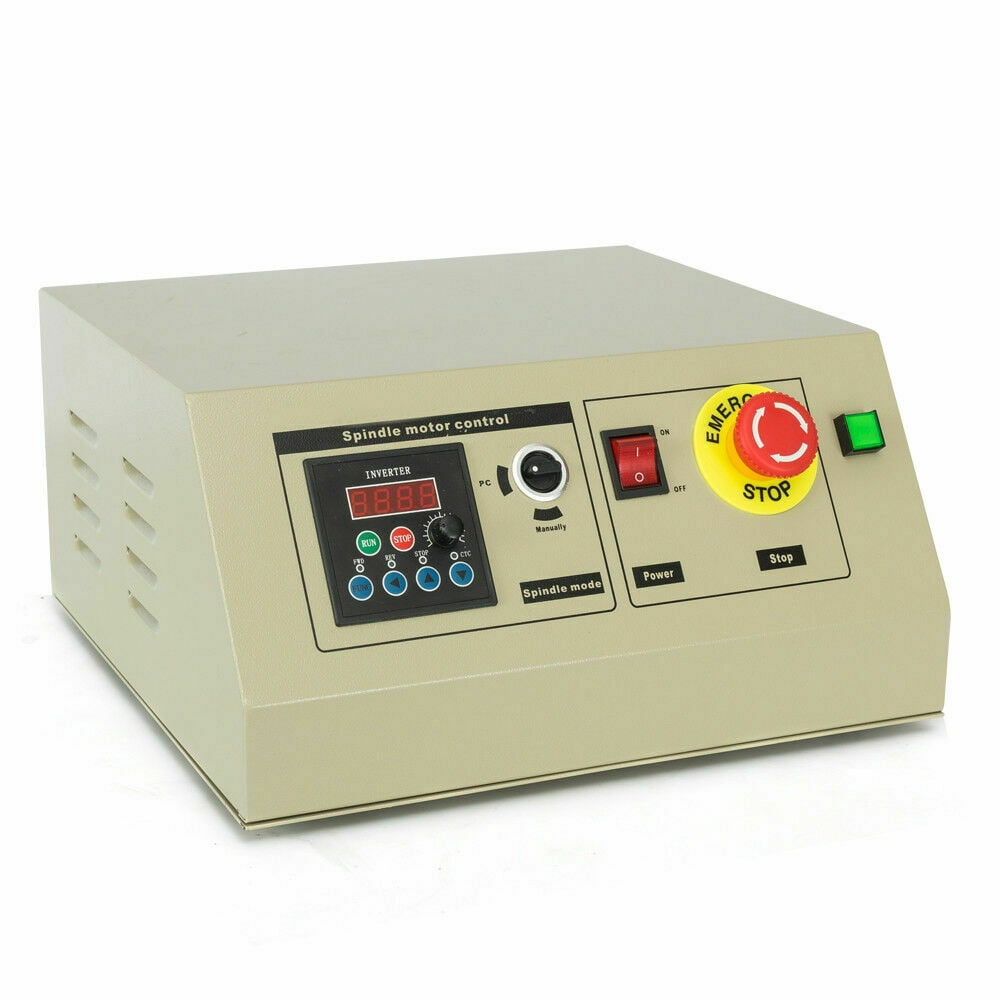

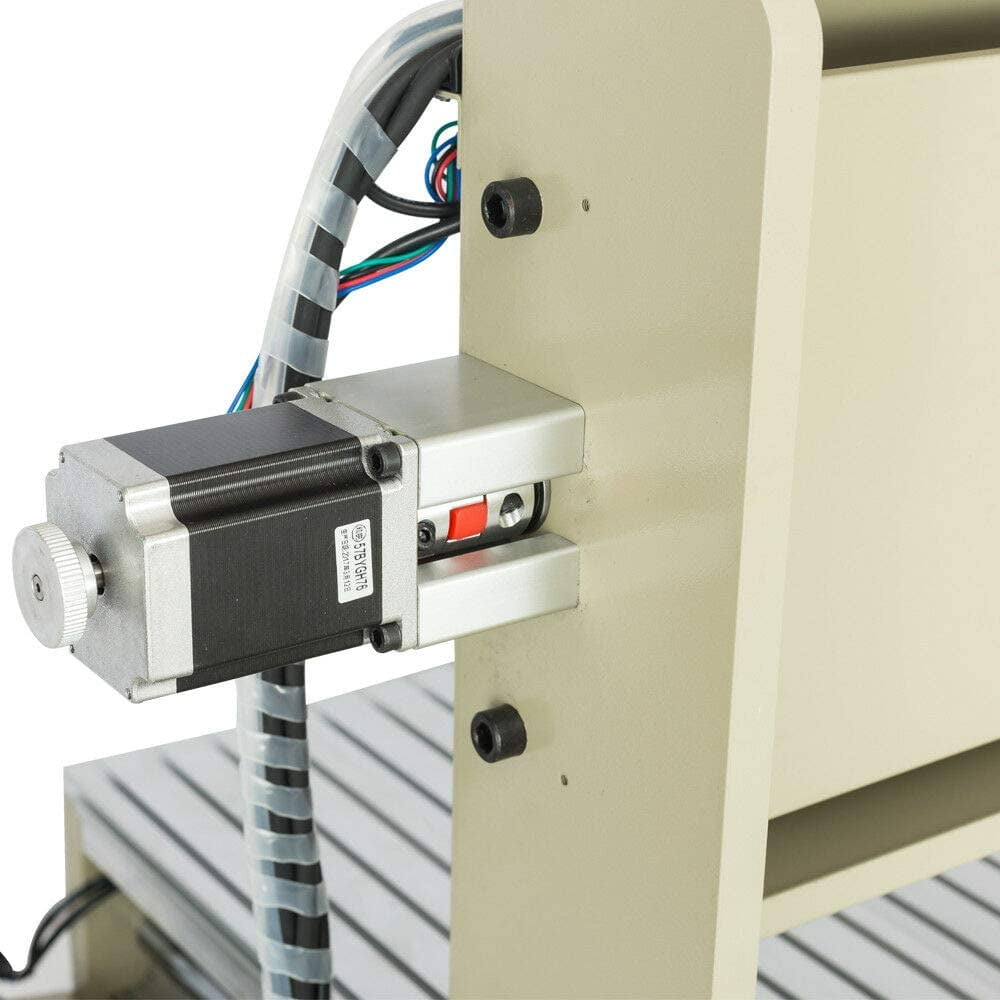

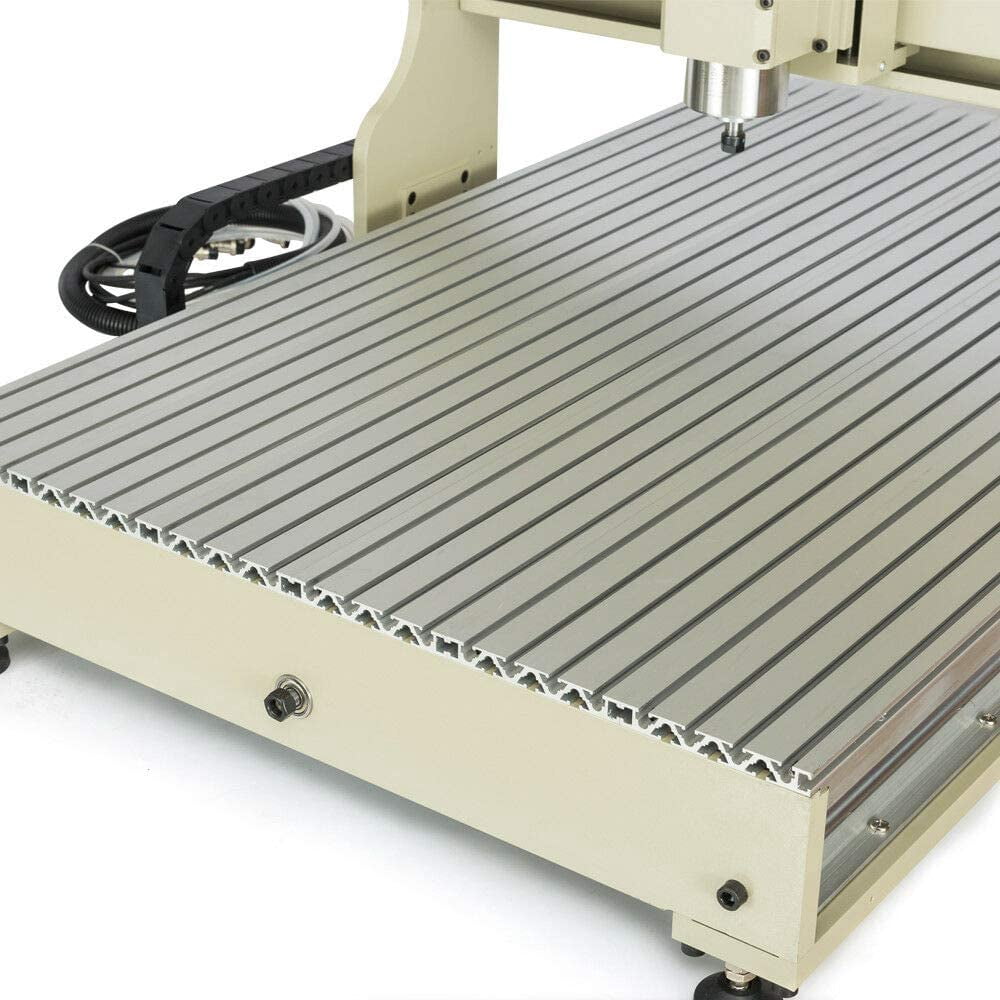

<p>Description</p> <p>Model:6090GZ</p> <p>Working platform size:1045x720mm(LxW)</p> <p>Frame Material:The whole machine used 6061 aluminum profiles</p> <p>Max. Feeding height:≤140mm(From base of Z axis to platform)</p> <p>X,Y,Z Working Area:600x900x150mm</p> <p>Sliding unit:X axis:SFU1605 Ball Screws;</p> <p>Y axis:SFU1605 Ball Screws;</p> <p>Z axis:SFU1204 Ball Screws</p> <p>Drive unit:X axis:ø20 High intensity round rail</p> <p>Y axis: SBRø20 high-strength aluminum base rails</p> <p>Z axis: ø12 high-strength round rail</p> <p>Stepping motor:two-phase 3A (with handwheels)</p> <p>Driving Power for Stepping motor:AC110,240W, Output DC24V10A Maximum Idle speed:1500mm/m</p> <p>Working Speed:50-1500mm/min (different material with different speed settings)</p> <p>Spindle motor:2200Whigh-speed variable frequency spindle motor, ER11 chuck , matching 6mm bur</p> <p>Variable-frequency Drive(VFD):AC110V, 2200W, 0-400Hz(built-in Control box )</p> <p>tips：</p> <p>1.The spindle motor must connect with the VFD.</p> <p>2.It cannot directly connect with the supply voltage(AC110V/220V).</p> <p>3.Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)</p> <p>Drive of Stepping motor0-3.5A adjustable four-axis drive(TB6560AHQchip, 24V power supply, 2,4,8,16Subdivision settings, Factory setting:8subdivided)</p> <p>Repositioning precision:≤0.05mm</p> <p>Speed:0-24000r/m</p> <p>Cooling method:Water cooling,Matching heat dissipation water pump</p> <p>Spindle precision:Radial runout≤0.03mm</p> <p>Carving command:G code/TAB file/nc/TAB /NCC/file</p> <p>Protection:Emergency stop button</p> <p>Communication interface:through USB PORT connect with computer</p> <p>System environment:Windows XP / win7 with 32bite</p> <p>Input Volts: AC110V</p> <p>Update function: with limit switch</p>

• The NEW 2.2KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.

• High quality accurate ball Screws drive make the engraving more precision.Anti-blackflash,high precision,long life circle.

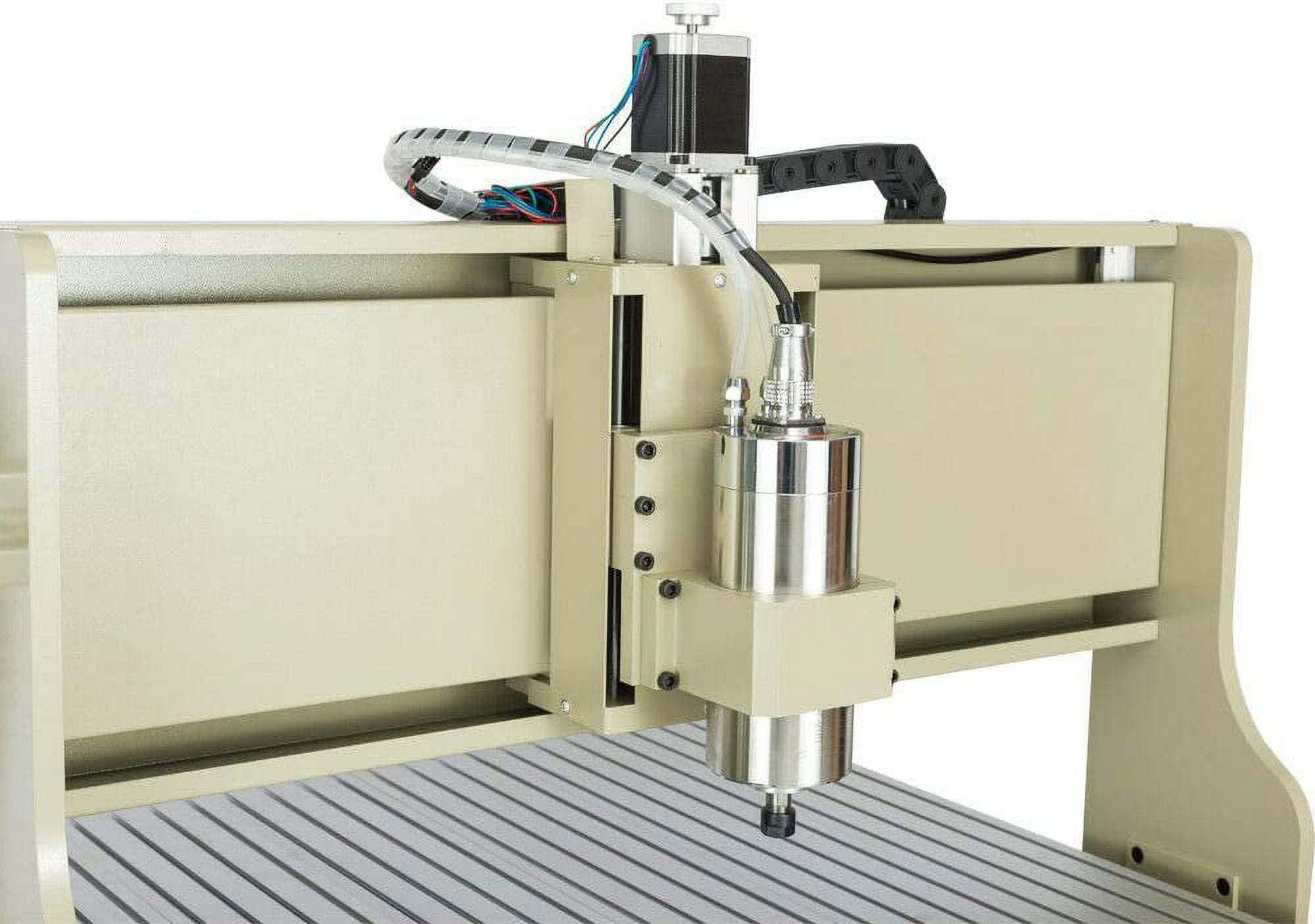

• Water cooling spindle works more stable and durable.It can improve the efficiency and accuracy of the machine.

• Applicable User&Skills: Advertising&Design staff,PCB Engineer,Woodwork fans,Model fans,User should better have electronics background,DIY ability to repair.

• Application industry: Woodworking industry: sculpture, round carving, wooden handicraft processing.Advertising signs: logo making, cutting acrylic, plastic molding, suit for making a variety of materials advertising decorative products.
